At the point when a flowing directing liquid is subjected to a transverse magnetic field, the flowing leading liquid cuts the magnetic field and makes a voltage be emerge. This incited voltage is relative to the liquid speed, which is flow rate.

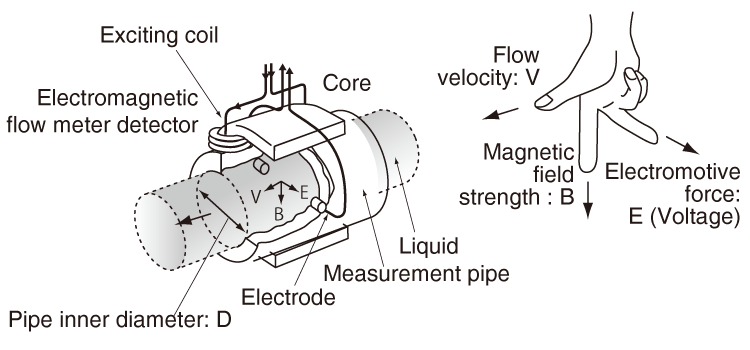

The fundamental parts of this instrument are as per the following:
A directing liquid is flowing through a non-magnetic and non-leading funnel, whose flow rate is to be estimated.
Two anodes are appended in inverse sides of pipe conveying the directing liquid. These anodes are in contact with the flowing leading liquid.
The pipe is encompassed by an electromagnet which produces which delivers a magnetic field.
This electromagnetic flow meter depends on Faraday's law of incited voltage which is given as takes after,
E = BLV
E = initiated voltage (volts)
B = flux density (Gauss)
L = Length of conductor which is the diameter of the pipe (cm)
V = Average speed of conductor (liquid) in cm/sec
At the point when the leading liquid flows through the pipe which is subjected to a magnetic field, the directing liquid cuts the magnetic field and because of this a voltage is prompted. As the magnetic field is consistent, voltage got over the terminals will be specifically corresponding to normal liquid speed and diameter (length) and consequently turns into a measure of volume flow rate.
Used to gauge flow rates of directing liquids.
Used to quantify flow rates of slurry, destructive and rough liquids.
Electromagnetic flow meter is utilized to quantify bidirectional flows by turning around associations which should be possible consequently.
Benefits of Electromagnetic flow meter:
These meters don't make impediment flow and henceforth cause no weight drop.
For estimations, it doesn't make a difference whether the flow is laminar or turbulent.
It gives exact outcomes.
Its unwavering quality is high, that is, it gives a standard execution for a stretched timeframe.
It can deal with oily materials and liquids containing suspended solids.
The estimation is free of consistency, thickness, temperature and weight.
Disadvantages Defined By electromagnetic flow meter manufacturers:
The liquid whose flow rate is to be estimated ought to fulfil certain conduction conditions.
The liquid ought to be full in the pipe to get precise outcomes.
Air and gas rises in the liquid will cause mistakes. With specific liquids, the anodes may get covered with scales and this will influence the yield flag. Be that as it may, this can be taken care off by cleaning the anodes.
Ultrasonic flow meters have turned out to be very prevalent in factories that require the flow of fluids or gases to be estimated in a precise way. They are used in many kind of industries and are valuable in numerous industries in India.
How Ultrasonic Flow Meter
Ultrasonic meters discharge ultrasonic wave remotely through fluids and can get the echoes when the signs are reflected off discontinuities such an air bubbles and so forth inside the fluids. This will help in deciding the speed of flow of the fluid. They are utilized as a part of various housing societies and factory applications. They can be utilized with unadulterated water, squander water, oils, fluid gases and chemicals. Seaward oil stages utilize these ultrasonic flow meter to decide the speed of flow of the oil that is being directed out of the sea depths. There is no compelling reason to change or disturb the structure of the channels and they can be depended upon to work in various conditions. Indeed, even the mining, sewage and sustenance ventures are finding them helpful.
Benefits of Ultrasonic Flow Meters India
- Ultrasonic flow meters are based on high technology can be handle from remote locations. They can be effectively design, manufacture and install as, when the need emerges. In addition, they are environmental friendly as in they don't add to environmental pollution.
- They can be utilized to gauge the flow of various kinds of gases and fluids. They are utilized to give exact flow information that is of such a great amount of significance to different factories. Ultrasonic flow meter work on the principal of ultrasonic waves, reception by piped walls and their transmission.
- Ultrasonic flow meter can be operate in various conditions and mediums which make them very beneficial to different applications.
The many precious benefits of ultrasonic flow meters over regular flow meters make them very popular flow meter among factory instrumentation engineers, first is ultrasonic flow meter price in India. Despite the fact that it might be a costly installation at first time, but after installation, it provide benefits for long time.
